Hi-Therm is one of the most experienced Industrial Oil Burner manufacturer in India:

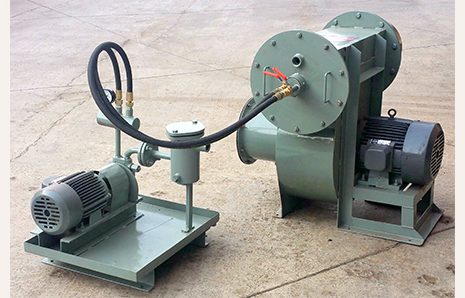

Our industrial oil burner series comprises of a burner head, blower, heating pumping unit and an electrical control panel. These burners work on furnace oil / fuel oil, diesel, light oil and heavy oil.

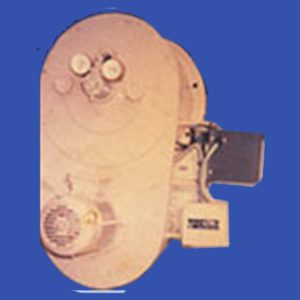

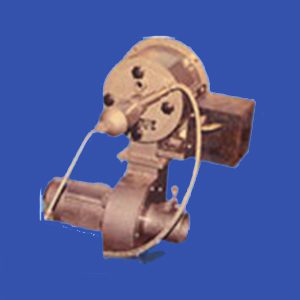

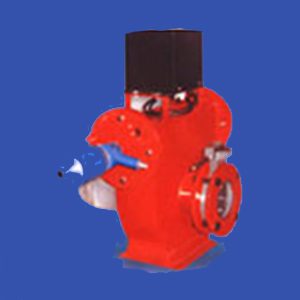

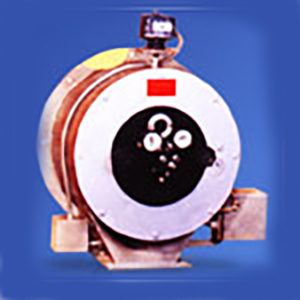

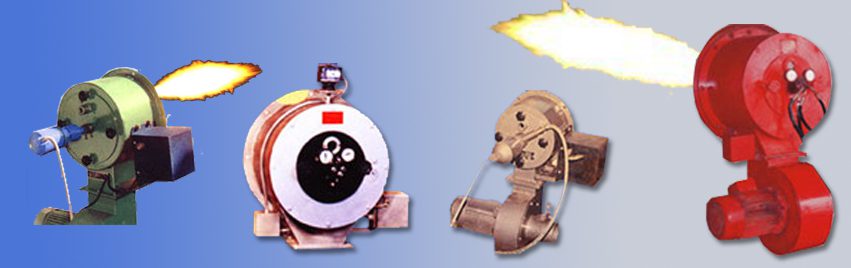

Burner Head :

A series – On/Off model are suitable for low firing capacity. Built-in blower along with oil pump with head makes it a compact model enabling it to used on small air heaters, ovens etc where space is a constraint.

B Series – High /Low / On/ Off – Model employ two nozzles and hydraulically operated rapid response of air dampers which regulates the combustion air at each firing rare. A unique system of hinged type maintenance door gives access to the combustion head for inspection and maintenance. Two stage operation automatically bring the industrial oil burner to low fire status once the desired temperature and pressure is attained and regulates output between the high and low fire set points, depending upon the demands of the system.

blower

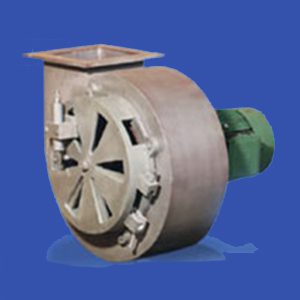

Blower :

The air required for the combustion of fuel oil is provided by the blower. A floor / flange mounted fan provides the air supply for the system. It has a rectangular outlet with a flange, which is drilled for bolting onto the industrial oil burner head. The air is controlled through a regulator located on the suction side.



heating pumping unit

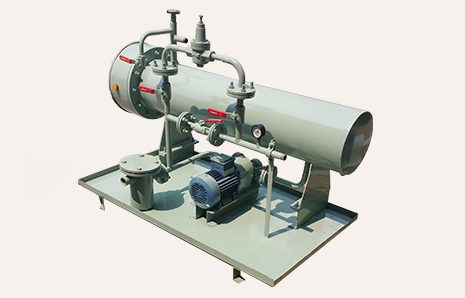

Heating Pumping Unit :

These units are designed to supply fuel oil to the industrial oil burner at a predetermined constant temperature and pressure required for efficient combustion. The principal components are electric heater which is in an immersion type, motorized rotary gear oil pump, oil filters, pressure gauges duly interpiped for the fuel control to the industrial oil burner. All the above components are neatly placed and piped on a common base tray making it compact and coordinated space saving design.

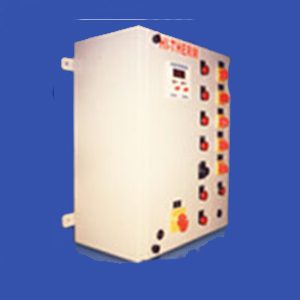

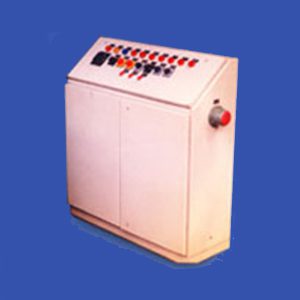

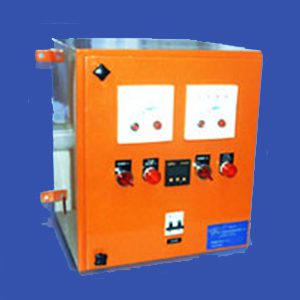

Electrical Control Panel :

The control panel is built into a free standing/wall mounted cabinet which incorporates a sequence controller, starters for the fan, fuel pump, and heater. All components are prewired, input and output circuits being grouped for ease on onward connection.

Features :

  • Designed for High / Low and On/Off operations
  • Available for Light and Heavy Fuel Oils
  • Available in Fully Automatic/Semi Automatic/Manual
  • Compact & Proven Design
  • Rugged Construction
  • Simplified Air/Oil Ratio
  • Highly Efficient and reliable
  • Easy and Simplified Maintenance
  • Quick Response to varying loads

Model Specifications :

Burner Series Capacity (LPH) Blower Motor HP Oil Pump Motor HP Heater (kW) Fuel Max appliance resistance allowed in mm W.G.
H1A 15 0.5 0.5 HSD/LDO 80
H3A 30 1.0 0.5 2.0 LDO/FO 80
H4A 45 1.5 0.5 3.0 LDO/FO 100
H6A 60 2.0 1.0 HSD/LDO 100
H6B 75 3.0 1.0 4.5 LDO/FO 100
H9B 90 5.0 1.5 6.0 LDO/FO 110
H5B 150 5.0 2.0 9.0 LDO/FO 110
H2B 200 7.5 2.0 12.0 LDO/FO 110
H25B 250 10.0 3.0 15.0 LDO/FO 110
H3B 300 12.5 3.0 18.0 LDO/FO 110
H4B 400 20.0 3.0 24.0 LDO/FO 110

Application :

Steam Boiler Hot Water Boiler Air Heater Hot Air Oven/ Dryer
Process Heating Plant Thermic Fluid Heater Hot Air Generator Drum Mix Plant

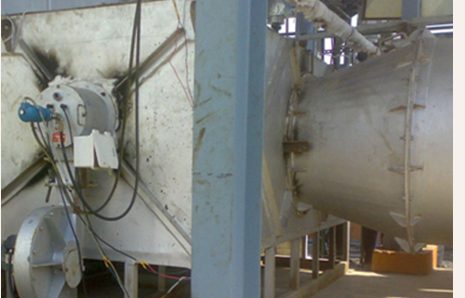

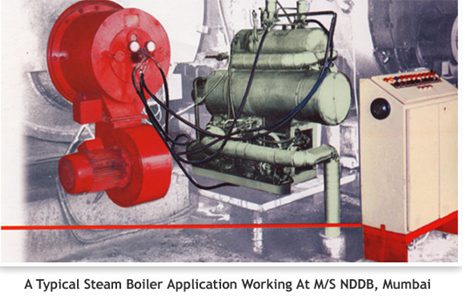

Photos of application in industries :
